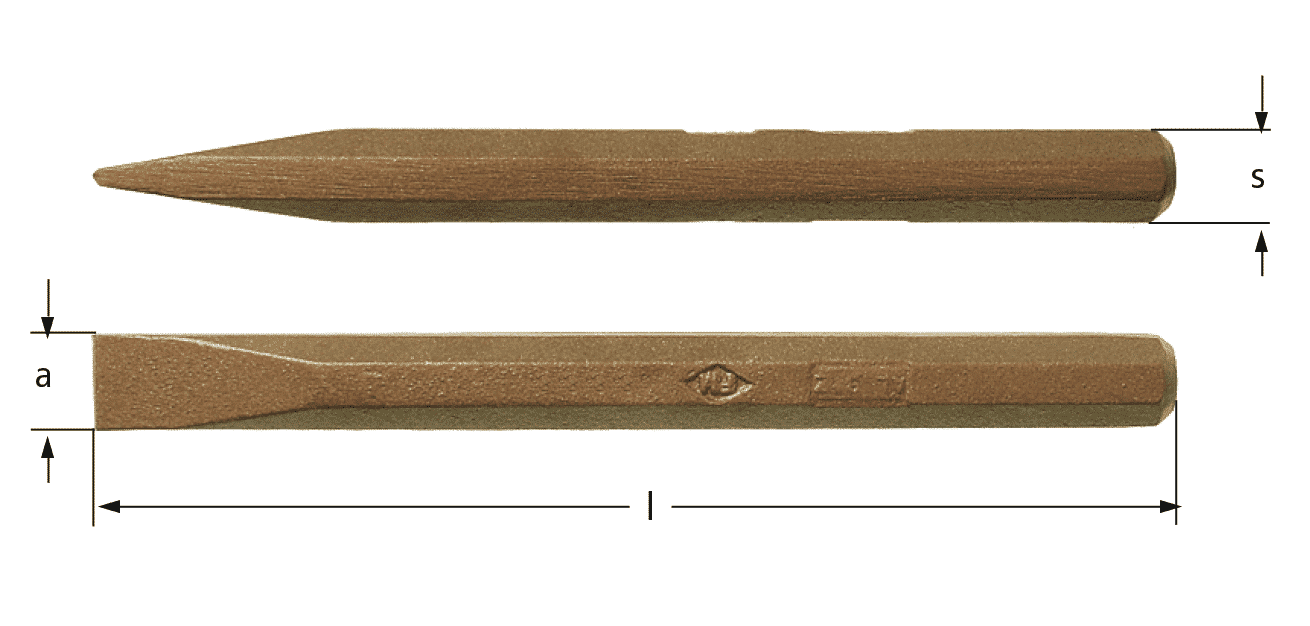

Hand chisel

Description

Hand chisel

Aluminium bronze (AlBz) has a magnetic permeability rating of μ 1.16 and a higher energy absorption capacity (good resistance to shocks).

Beryllium Copper (BeCu) has a magnetic permeability rating of μ 1.00 high. Hardness can reach from 280 to 350 Brinell. This alloy is well adapted for small surfaces which require strength.

Additional information

Weight 35 g
Dimensions 130 mm
Material

AlBz, BeCu
Metric/Imperial Units

mm
a mm

8, 10, 14, 18, 20, 23, 17, 50, 19, 26, 24, 27, 22
s mm

6, 10, 12, 16, 19, 23, 20, 17, 32, 14, 26, 24

SKU: MA0130A

Description

Hand chisel

Aluminium bronze (AlBz) has a magnetic permeability rating of μ 1.16 and a higher energy absorption capacity (good resistance to shocks).

Beryllium Copper (BeCu) has a magnetic permeability rating of μ 1.00 high. Hardness can reach from 280 to 350 Brinell. This alloy is well adapted for small surfaces which require strength.

Additional information

Weight 35 g
Dimensions 130 mm
Material

AlBz, BeCu
Metric/Imperial Units

mm
a mm

8, 10, 14, 18, 20, 23, 17, 50, 19, 26, 24, 27, 22
s mm

6, 10, 12, 16, 19, 23, 20, 17, 32, 14, 26, 24

Related Products

Add products to quote

You can add one or more products to your quote by specifying a quantity.

Product Specs

Part No

Material

a mm

s mm

l (mm)

(g)

Quantity

Part No.: MA0130A
Material: AlBz
a mm: 8
s mm: 6
L (mm): 130
(g): 35
Quantity:
Part No.: MA0130B
Material: BeCu
a mm: 8
s mm: 6
L (mm): 130
(g): 35
Quantity:
Part No.: MA0145A
Material: AlBz
a mm: 10
s mm: 10
L (mm): 145
(g): 75
Quantity:
Part No.: MA0145B
Material: BeCu
a mm: 10
s mm: 10
L (mm): 145
(g): 75
Quantity:
Part No.: MA0155A
Material: AlBz
a mm: 14
s mm: 12
L (mm): 155
(g): 145
Quantity:
Part No.: MA0155B
Material: BeCu
a mm: 14
s mm: 12
L (mm): 155
(g): 145
Quantity:
Part No.: MA0160A
Material: AlBz
a mm: 18
s mm: 16
L (mm): 160
(g): 240
Quantity:
Part No.: MA0160B
Material: BeCu
a mm: 18
s mm: 16
L (mm): 160
(g): 240
Quantity:
Part No.: MA0200A
Material: AlBz
a mm: 20
s mm: 19
L (mm): 200
(g): 400
Quantity:
Part No.: MA0200B
Material: BeCu
a mm: 20
s mm: 19
L (mm): 200
(g): 400
Quantity:
Part No.: MA0220A
Material: AlBz
a mm: 23
s mm: 23
L (mm): 220
(g): 580
Quantity:
Part No.: MA0220B
Material: BeCu
a mm: 23
s mm: 23
L (mm): 220
(g): 580
Quantity:
Part No.: MA0225A
Material: AlBz
a mm: 20
s mm: 20
L (mm): 225
(g): 475
Quantity:
Part No.: MA0225B
Material: BeCu
a mm: 20
s mm: 20
L (mm): 225
(g): 475
Quantity:
Part No.: MA0230A
Material: AlBz
a mm: 17
s mm: 17
L (mm): 230
(g): 380
Quantity:
Part No.: MA0230B
Material: BeCu
a mm: 17
s mm: 17
L (mm): 230
(g): 380
Quantity:
Part No.: MA0270A
Material: AlBz
a mm: 50
s mm: 32
L (mm): 270
(g): 1645
Quantity:
Part No.: MA0270B
Material: BeCu
a mm: 50
s mm: 32
L (mm): 270
(g): 1645
Quantity:
Part No.: MA0305A
Material: AlBz
a mm: 14
s mm: 14
L (mm): 305
(g): 300
Quantity:
Part No.: MA0305B
Material: BeCu
a mm: 14
s mm: 14
L (mm): 305
(g): 300
Quantity:
Part No.: MA0370A
Material: AlBz
a mm: 19
s mm: 14
L (mm): 370
(g): 420
Quantity:
Part No.: MA0370B
Material: BeCu
a mm: 19
s mm: 14
L (mm): 370
(g): 420
Quantity:
Part No.: MA0450A
Material: AlBz
a mm: 26
s mm: 26
L (mm): 450
(g): 1645
Quantity:
Part No.: MA0450B
Material: BeCu
a mm: 26
s mm: 26
L (mm): 450
(g): 1645
Quantity:
Part No.: MA0760A
Material: AlBz
a mm: 24
s mm: 24
L (mm): 760
(g): 2610
Quantity:
Part No.: MA0760B
Material: BeCu
a mm: 24
s mm: 24
L (mm): 760
(g): 2610
Quantity:
Part No.: MA1155A
Material: AlBz
a mm: 17
s mm: 17
L (mm): 155
(g): 240
Quantity:
Part No.: MA1155B
Material: BeCu
a mm: 17
s mm: 17
L (mm): 155
(g): 240
Quantity:
Part No.: MA1230A
Material: AlBz
a mm: 27
s mm: 24
L (mm): 230
(g): 740
Quantity:
Part No.: MA1230B
Material: BeCu
a mm: 27
s mm: 24
L (mm): 230
(g): 740
Quantity:
Part No.: MA1305A
Material: AlBz
a mm: 22
s mm: 19
L (mm): 305
(g): 655
Quantity:
Part No.: MA1305B
Material: BeCu
a mm: 22
s mm: 19
L (mm): 305
(g): 655
Quantity:
