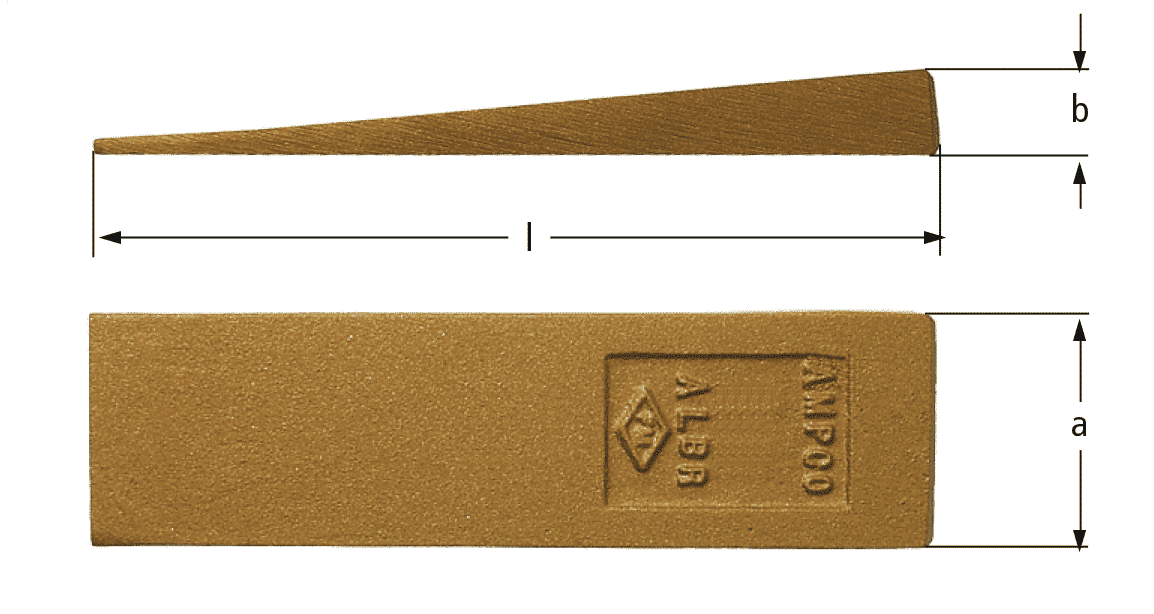

Flange wedge

Description

Flange wedge

Aluminium bronze (AlBz) has a magnetic permeability rating of μ 1.16 and a higher energy absorption capacity (good resistance to shocks).

Beryllium Copper (BeCu) has a magnetic permeability rating of μ 1.00 high. Hardness can reach from 280 to 350 Brinell. This alloy is well adapted for small surfaces which require strength.

Additional information

Weight 50 g
Dimensions 80 mm
Material

AlBz, BeCu
Metric/Imperial Units

mm
a mm

15, 19, 25, 32, 38, 50
b mm

6, 13, 19, 41, 25, 32, 10, 50

SKU: MP1501A

Description

Flange wedge

Aluminium bronze (AlBz) has a magnetic permeability rating of μ 1.16 and a higher energy absorption capacity (good resistance to shocks).

Beryllium Copper (BeCu) has a magnetic permeability rating of μ 1.00 high. Hardness can reach from 280 to 350 Brinell. This alloy is well adapted for small surfaces which require strength.

Additional information

Weight 50 g
Dimensions 80 mm
Material

AlBz, BeCu
Metric/Imperial Units

mm
a mm

15, 19, 25, 32, 38, 50
b mm

6, 13, 19, 41, 25, 32, 10, 50

Related Products

Add products to quote

You can add one or more products to your quote by specifying a quantity.

Product Specs

Part No

Material

a mm

b mm

l (mm)

(g)

Quantity

Part No.: MP1501A
Material: AlBz
a mm: 15
b mm: 6
L (mm): 80
(g): 50
Quantity:
Part No.: MP1501B
Material: BeCu
a mm: 15
b mm: 6
L (mm): 80
(g): 50
Quantity:
Part No.: MP1902A
Material: AlBz
a mm: 19
b mm: 13
L (mm): 105
(g): 100
Quantity:
Part No.: MP1902B
Material: BeCu
a mm: 19
b mm: 13
L (mm): 105
(g): 100
Quantity:
Part No.: MP2503A
Material: AlBz
a mm: 25
b mm: 13
L (mm): 150
(g): 200
Quantity:
Part No.: MP2503B
Material: BeCu
a mm: 25
b mm: 13
L (mm): 150
(g): 200
Quantity:
Part No.: MP3205A
Material: AlBz
a mm: 32
b mm: 13
L (mm): 180
(g): 300
Quantity:
Part No.: MP3205B
Material: BeCu
a mm: 32
b mm: 13
L (mm): 180
(g): 300
Quantity:
Part No.: MP3804A
Material: AlBz
a mm: 38
b mm: 19
L (mm): 150
(g): 400
Quantity:
Part No.: MP3804B
Material: BeCu
a mm: 38
b mm: 19
L (mm): 150
(g): 400
Quantity:
Part No.: MP3807A
Material: AlBz
a mm: 38
b mm: 41
L (mm): 200
(g): 1300
Quantity:
Part No.: MP3807B
Material: BeCu
a mm: 38
b mm: 41
L (mm): 200
(g): 1300
Quantity:
Part No.: MP3808A
Material: AlBz
a mm: 38
b mm: 25
L (mm): 200
(g): 800
Quantity:
Part No.: MP3808B
Material: BeCu
a mm: 38
b mm: 25
L (mm): 200
(g): 800
Quantity:
Part No.: MP5006A
Material: AlBz
a mm: 50
b mm: 19
L (mm): 180
(g): 730
Quantity:
Part No.: MP5006B
Material: BeCu
a mm: 50
b mm: 19
L (mm): 180
(g): 730
Quantity:
Part No.: MP5009A
Material: AlBz
a mm: 50
b mm: 19
L (mm): 200
(g): 805
Quantity:
Part No.: MP5009B
Material: BeCu
a mm: 50
b mm: 19
L (mm): 200
(g): 805
Quantity:
Part No.: MP5010A
Material: AlBz
a mm: 50
b mm: 32
L (mm): 215
(g): 1400
Quantity:
Part No.: MP5010B
Material: BeCu
a mm: 50
b mm: 32
L (mm): 215
(g): 1400
Quantity:
Part No.: MP5011A
Material: AlBz
a mm: 50
b mm: 10
L (mm): 180
(g): 400
Quantity:
Part No.: MP5011B
Material: BeCu
a mm: 50
b mm: 10
L (mm): 180
(g): 400
Quantity:
Part No.: MP5012A
Material: AlBz
a mm: 50
b mm: 10
L (mm): 90
(g): 200
Quantity:
Part No.: MP5012B
Material: BeCu
a mm: 50
b mm: 10
L (mm): 90
(g): 200
Quantity:
Part No.: MP5013A
Material: AlBz
a mm: 50
b mm: 50
L (mm): 200
(g): 2080
Quantity:
