Construction box wrench offset with pin
- Description
- Size Guide
- Additional information
Description
Construction box wrench offset with pin
Aluminium bronze (AlBz) has a magnetic permeability rating of μ 1.16 and a higher energy absorption capacity (good resistance to shocks).
Beryllium Copper (BeCu) has a magnetic permeability rating of μ 1.00 high. Hardness can reach from 280 to 350 Brinell. This alloy is well adapted for small surfaces which require strength.
Additional information
| Weight | 295 g |
|---|---|
| Dimensions | 320 mm |
| Material | AlBz, BeCu |
| Size (mm) | 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 33, 34, 35, 36, 37, 38, 41, 42, 46, 47, 50, 60, 65, 70, N/A |
| Size (in) | N/A, 11/16, 3/4, 25/32, 13/16, 7/8, 15/16, 31/32, 1, 1-1/16, 1-1/8, 1-3/16, 1-1/4, 1-5/16, 1-3/8, 1-7/16, 1-1/2, 1-9/16, 1-5/8, 1-11/16, 1-3/4, 1-13/16, 1-7/8, 2 |
| Metric/Imperial Units | mm, in |
SKU: AN0017A
- Description
- Size Guide
- Additional information
Description
Construction box wrench offset with pin
Aluminium bronze (AlBz) has a magnetic permeability rating of μ 1.16 and a higher energy absorption capacity (good resistance to shocks).
Beryllium Copper (BeCu) has a magnetic permeability rating of μ 1.00 high. Hardness can reach from 280 to 350 Brinell. This alloy is well adapted for small surfaces which require strength.
Additional information
| Weight | 295 g |
|---|---|
| Dimensions | 320 mm |
| Material | AlBz, BeCu |
| Size (mm) | 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 33, 34, 35, 36, 37, 38, 41, 42, 46, 47, 50, 60, 65, 70, N/A |
| Size (in) | N/A, 11/16, 3/4, 25/32, 13/16, 7/8, 15/16, 31/32, 1, 1-1/16, 1-1/8, 1-3/16, 1-1/4, 1-5/16, 1-3/8, 1-7/16, 1-1/2, 1-9/16, 1-5/8, 1-11/16, 1-3/4, 1-13/16, 1-7/8, 2 |
| Metric/Imperial Units | mm, in |
Related Products
-
WrenchesAdjustable pipe wrench
Add To Quote This product has multiple variants. The options may be chosen on the product pageQuick View -

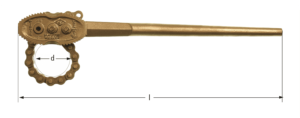

WrenchesChain pipe wrench
Add To Quote This product has multiple variants. The options may be chosen on the product pageQuick View -
WrenchesDouble end box wrench flat
Add To Quote This product has multiple variants. The options may be chosen on the product pageQuick View -
WrenchesMonkey (Railroad) wrench
Add To Quote This product has multiple variants. The options may be chosen on the product pageQuick View -
WrenchesSingle open end wrench
Add To Quote This product has multiple variants. The options may be chosen on the product pageQuick View
Add products to quote
You can add one or more products to your quote by specifying a quantity.
Product Specs
Part No
Material
S (mm)
l (mm)
(g)
Quantity
Part No.: AN0017A
Material: AlBz
Size (mm): 17
L (mm): 320
(g): 295
Quantity:
Part No.: AN0017B
Material: BeCu
Size (mm): 17
L (mm): 320
(g): 295
Quantity:
Part No.: AN0018A
Material: AlBz
Size (mm): 18
L (mm): 320
(g): 295
Quantity:
Part No.: AN0018B
Material: BeCu
Size (mm): 18
L (mm): 320
(g): 295
Quantity:
Part No.: AN0019A
Material: AlBz
Size (mm): 19
L (mm): 350
(g): 510
Quantity:
Part No.: AN0019B
Material: BeCu
Size (mm): 19
L (mm): 350
(g): 510
Quantity:
Part No.: AN0020A
Material: AlBz
Size (mm): 20
L (mm): 350
(g): 510
Quantity:
Part No.: AN0020B
Material: BeCu
Size (mm): 20
L (mm): 350
(g): 510
Quantity:
Part No.: AN0021A
Material: AlBz
Size (mm): 21
L (mm): 350
(g): 510
Quantity:
Part No.: AN0021B
Material: BeCu
Size (mm): 21
L (mm): 350
(g): 510
Quantity:
Part No.: AN0022A
Material: AlBz
Size (mm): 22
L (mm): 350
(g): 510
Quantity:
Part No.: AN0022B
Material: BeCu
Size (mm): 22
L (mm): 350
(g): 510
Quantity:
Part No.: AN0023A
Material: AlBz
Size (mm): 23
L (mm): 370
(g): 715
Quantity:
Part No.: AN0023B
Material: BeCu
Size (mm): 23
L (mm): 370
(g): 715
Quantity:
Part No.: AN0024A
Material: AlBz
Size (mm): 24
L (mm): 370
(g): 715
Quantity:
Part No.: AN0024B
Material: BeCu
Size (mm): 24
L (mm): 370
(g): 715
Quantity:
Part No.: AN0025A
Material: AlBz
Size (mm): 25
L (mm): 370
(g): 715
Quantity:
Part No.: AN0025B
Material: BeCu
Size (mm): 25
L (mm): 370
(g): 715
Quantity:
Part No.: AN0026A
Material: AlBz
Size (mm): 26
L (mm): 370
(g): 715
Quantity:
Part No.: AN0026B
Material: BeCu
Size (mm): 26
L (mm): 370
(g): 715
Quantity:
Part No.: AN0027A
Material: AlBz
Size (mm): 27
L (mm): 370
(g): 715
Quantity:
Part No.: AN0027B
Material: BeCu
Size (mm): 27
L (mm): 370
(g): 715
Quantity:
Part No.: AN0028A
Material: AlBz
Size (mm): 28
L (mm): 400
(g): 1145
Quantity:
Part No.: AN0028B
Material: BeCu
Size (mm): 28
L (mm): 400
(g): 1145
Quantity:
Part No.: AN0029A
Material: AlBz
Size (mm): 29
L (mm): 400
(g): 1145
Quantity:
Part No.: AN0029B
Material: BeCu
Size (mm): 29
L (mm): 400
(g): 1145
Quantity:
Part No.: AN0030A
Material: AlBz
Size (mm): 30
L (mm): 400
(g): 1145
Quantity:
Part No.: AN0030B
Material: BeCu
Size (mm): 30
L (mm): 400
(g): 1145
Quantity:
Part No.: AN0032A
Material: AlBz
Size (mm): 32
L (mm): 400
(g): 1145
Quantity:
Part No.: AN0032B
Material: BeCu
Size (mm): 32
L (mm): 400
(g): 1145
Quantity:
Part No.: AN0033A
Material: AlBz
Size (mm): 33
L (mm): 400
(g): 1145
Quantity:
Part No.: AN0033B
Material: BeCu
Size (mm): 33
L (mm): 400
(g): 1145
Quantity:
Part No.: AN0034A
Material: AlBz
Size (mm): 34
L (mm): 400
(g): 1145
Quantity:
Part No.: AN0034B
Material: BeCu
Size (mm): 34
L (mm): 400
(g): 1145
Quantity:
Part No.: AN0035A
Material: AlBz
Size (mm): 35
L (mm): 430
(g): 1540
Quantity:
Part No.: AN0035B
Material: BeCu
Size (mm): 35
L (mm): 430
(g): 1540
Quantity:
Part No.: AN0036A
Material: AlBz
Size (mm): 36
L (mm): 430
(g): 1540
Quantity:
Part No.: AN0036B
Material: BeCu
Size (mm): 36
L (mm): 430
(g): 1540
Quantity:
Part No.: AN0037A
Material: AlBz
Size (mm): 37
L (mm): 430
(g): 1540
Quantity:
Part No.: AN0037B
Material: BeCu
Size (mm): 37
L (mm): 430
(g): 1540
Quantity:
Part No.: AN0038A
Material: AlBz
Size (mm): 38
L (mm): 430
(g): 1540
Quantity:
Part No.: AN0038B
Material: BeCu
Size (mm): 38
L (mm): 430
(g): 1540
Quantity:
Part No.: AN0041A
Material: AlBz
Size (mm): 41
L (mm): 470
(g): 2090
Quantity:
Part No.: AN0041B
Material: BeCu
Size (mm): 41
L (mm): 470
(g): 2090
Quantity:
Part No.: AN0042A
Material: AlBz
Size (mm): 42
L (mm): 470
(g): 2090
Quantity:
Part No.: AN0042B
Material: BeCu
Size (mm): 42
L (mm): 470
(g): 2090
Quantity:
Part No.: AN0046A
Material: AlBz
Size (mm): 46
L (mm): 500
(g): 2970
Quantity:
Part No.: AN0046B
Material: BeCu
Size (mm): 46
L (mm): 500
(g): 2970
Quantity:
Part No.: AN0047A
Material: AlBz
Size (mm): 47
L (mm): 500
(g): 2970
Quantity:
Part No.: AN0047B
Material: BeCu
Size (mm): 47
L (mm): 500
(g): 2970
Quantity:
Part No.: AN0050A
Material: AlBz
Size (mm): 50
L (mm): 530
(g): 3900
Quantity:
Part No.: AN0050B
Material: BeCu
Size (mm): 50
L (mm): 530
(g): 3900
Quantity:
Part No.: AN0060A
Material: AlBz
Size (mm): 60
L (mm): 575
(g): 4200
Quantity:
Part No.: AN0060B
Material: BeCu
Size (mm): 60
L (mm): 575
(g): 4200
Quantity:
Part No.: AN0065A
Material: AlBz
Size (mm): 65
L (mm): 575
(g): 4500
Quantity:
Part No.: AN0065B
Material: BeCu
Size (mm): 65
L (mm): 575
(g): 4500
Quantity:
Part No.: AN0070A
Material: AlBz
Size (mm): 70
L (mm): 575
(g): 4500
Quantity:
Part No.: AN0070B
Material: BeCu
Size (mm): 70
L (mm): 575
(g): 4500
Quantity:
Product Specs
Part No
Material
S (in)
l (mm)
(g)
Quantity
Part No.: BN0018A
Material: AlBz
Size (in): 11/16
L (mm): 320
(g): 295
Quantity:
Part No.: BN0018B
Material: BeCu
Size (in): 11/16
L (mm): 320
(g): 295
Quantity:
Part No.: BN0019A
Material: AlBz
Size (in): 3/4
L (mm): 350
(g): 510
Quantity:
Part No.: BN0019B
Material: BeCu
Size (in): 3/4
L (mm): 350
(g): 510
Quantity:
Part No.: BN0020A
Material: AlBz
Size (in): 25/32
L (mm): 350
(g): 510
Quantity:
Part No.: BN0020B
Material: BeCu
Size (in): 25/32
L (mm): 350
(g): 510
Quantity:
Part No.: BN0021A
Material: AlBz
Size (in): 13/16
L (mm): 350
(g): 510
Quantity:
Part No.: BN0021B
Material: BeCu
Size (in): 13/16
L (mm): 350
(g): 510
Quantity:
Part No.: BN0022A
Material: AlBz
Size (in): 7/8
L (mm): 350
(g): 510
Quantity:
Part No.: BN0022B
Material: BeCu
Size (in): 7/8
L (mm): 350
(g): 510
Quantity:
Part No.: BN0024A
Material: AlBz
Size (in): 15/16
L (mm): 370
(g): 715
Quantity:
Part No.: BN0024B
Material: BeCu
Size (in): 15/16
L (mm): 370
(g): 715
Quantity:
Part No.: BN0025A
Material: AlBz
Size (in): 31/32
L (mm): 370
(g): 715
Quantity:
Part No.: BN0025B
Material: BeCu
Size (in): 31/32
L (mm): 370
(g): 715
Quantity:
Part No.: BN0026A
Material: AlBz
Size (in): 1
L (mm): 370
(g): 715
Quantity:
Part No.: BN0026B
Material: BeCu
Size (in): 1
L (mm): 370
(g): 715
Quantity:
Part No.: BN0027A
Material: AlBz
Size (in): 1-1/16
L (mm): 370
(g): 715
Quantity:
Part No.: BN0027B
Material: BeCu
Size (in): 1-1/16
L (mm): 370
(g): 715
Quantity:
Part No.: BN0029A
Material: AlBz
Size (in): 1-1/8
L (mm): 400
(g): 1145
Quantity:
Part No.: BN0029B
Material: BeCu
Size (in): 1-1/8
L (mm): 400
(g): 1145
Quantity:
Part No.: BN0030A
Material: AlBz
Size (in): 1-3/16
L (mm): 400
(g): 1145
Quantity:
Part No.: BN0030B
Material: BeCu
Size (in): 1-3/16
L (mm): 400
(g): 1145
Quantity:
Part No.: BN0032A
Material: AlBz
Size (in): 1-1/4
L (mm): 400
(g): 1145
Quantity:
Part No.: BN0032B
Material: BeCu
Size (in): 1-1/4
L (mm): 400
(g): 1145
Quantity:
Part No.: BN0033A
Material: AlBz
Size (in): 1-5/16
L (mm): 400
(g): 1145
Quantity:
Part No.: BN0033B
Material: BeCu
Size (in): 1-5/16
L (mm): 400
(g): 1145
Quantity:
Part No.: BN0035A
Material: AlBz
Size (in): 1-3/8
L (mm): 430
(g): 1540
Quantity:
Part No.: BN0035B
Material: BeCu
Size (in): 1-3/8
L (mm): 430
(g): 1540
Quantity:
Part No.: BN0037A
Material: AlBz
Size (in): 1-7/16
L (mm): 430
(g): 1540
Quantity:
Part No.: BN0037B
Material: BeCu
Size (in): 1-7/16
L (mm): 430
(g): 1540
Quantity:
Part No.: BN0038A
Material: AlBz
Size (in): 1-1/2
L (mm): 430
(g): 1540
Quantity:
Part No.: BN0038B
Material: BeCu
Size (in): 1-1/2
L (mm): 430
(g): 1540
Quantity:
Part No.: BN0039A
Material: AlBz
Size (in): 1-9/16
L (mm): 470
(g): 2090
Quantity:
Part No.: BN0039B
Material: BeCu
Size (in): 1-9/16
L (mm): 470
(g): 2090
Quantity:
Part No.: BN0041A
Material: AlBz
Size (in): 1-5/8
L (mm): 470
(g): 2090
Quantity:
Part No.: BN0041B
Material: BeCu
Size (in): 1-5/8
L (mm): 470
(g): 2090
Quantity:
Part No.: BN0043A
Material: AlBz
Size (in): 1-11/16
L (mm): 470
(g): 2090
Quantity:
Part No.: BN0043B
Material: BeCu
Size (in): 1-11/16
L (mm): 470
(g): 2090
Quantity:
Part No.: BN0044A
Material: AlBz
Size (in): 1-3/4
L (mm): 500
(g): 2970
Quantity:
Part No.: BN0044B
Material: BeCu
Size (in): 1-3/4
L (mm): 500
(g): 2970
Quantity:
Part No.: BN0046A
Material: AlBz
Size (in): 1-13/16
L (mm): 500
(g): 2970
Quantity:
Part No.: BN0046B
Material: BeCu
Size (in): 1-13/16
L (mm): 500
(g): 2970
Quantity:
Part No.: BN0048A
Material: AlBz
Size (in): 1-7/8
L (mm): 500
(g): 2970
Quantity:
Part No.: BN0048B
Material: BeCu
Size (in): 1-7/8
L (mm): 500
(g): 2970
Quantity:
Part No.: BN0051A
Material: AlBz
Size (in): 2
L (mm): 530
(g): 3900
Quantity:
Part No.: BN0051B
Material: BeCu
Size (in): 2
L (mm): 530
(g): 3900
Quantity:
Material
Size
products selected: 0
Add to Quote
