Bull point pneumatic chisel, DIN20376

Description

Bull point pneumatic chisel, DIN20376

Aluminium bronze (AlBz) has a magnetic permeability rating of μ 1.16 and a higher energy absorption capacity (good resistance to shocks).

Beryllium Copper (BeCu) has a magnetic permeability rating of μ 1.00 high. Hardness can reach from 280 to 350 Brinell. This alloy is well adapted for small surfaces which require strength.

Additional information

Weight 1140 g
Dimensions 250 mm
Material

AlBz, BeCu

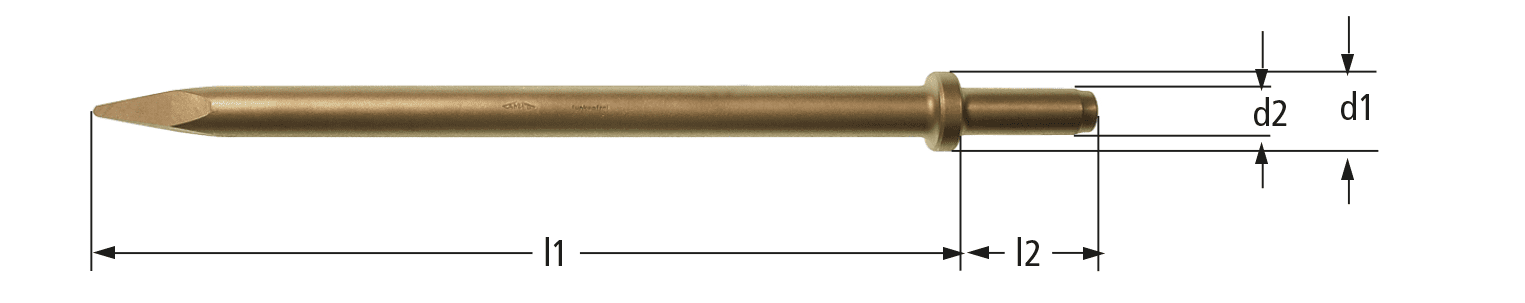

Metric/Imperial Units

mm
l2

42
l1

250, 350, 450
d1

25
d2

75

SKU: MG0250A

Description

Bull point pneumatic chisel, DIN20376

Aluminium bronze (AlBz) has a magnetic permeability rating of μ 1.16 and a higher energy absorption capacity (good resistance to shocks).

Beryllium Copper (BeCu) has a magnetic permeability rating of μ 1.00 high. Hardness can reach from 280 to 350 Brinell. This alloy is well adapted for small surfaces which require strength.

Additional information

Weight 1140 g
Dimensions 250 mm
Material

AlBz, BeCu
Metric/Imperial Units

mm
l2

42
l1

250, 350, 450
d1

25
d2

75

Related Products

Add products to quote

You can add one or more products to your quote by specifying a quantity.

Product Specs

Part No

Material

l2

l1

d1

d2

l (mm)

(g)

Quantity

Part No.: MG0250A
Material: AlBz
l2: 42
l1: 250
d1: 25
d2: 75
L (mm): 250
(g): 1140
Quantity:
Part No.: MG0250B
Material: BeCu
l2: 42
l1: 250
d1: 25
d2: 75
L (mm): 250
(g): 1140
Quantity:
Part No.: MG0350A
Material: AlBz
l2: 42
l1: 350
d1: 25
d2: 75
L (mm): 350
(g): 1600
Quantity:
Part No.: MG0350B
Material: BeCu
l2: 42
l1: 350
d1: 25
d2: 75
L (mm): 350
(g): 1600
Quantity:
Part No.: MG0450A
Material: AlBz
l2: 42
l1: 450
d1: 25
d2: 75
L (mm): 450
(g): 2050
Quantity:
Part No.: MG0450B
Material: BeCu
l2: 42
l1: 450
d1: 25
d2: 75
L (mm): 450
(g): 2050
Quantity:
