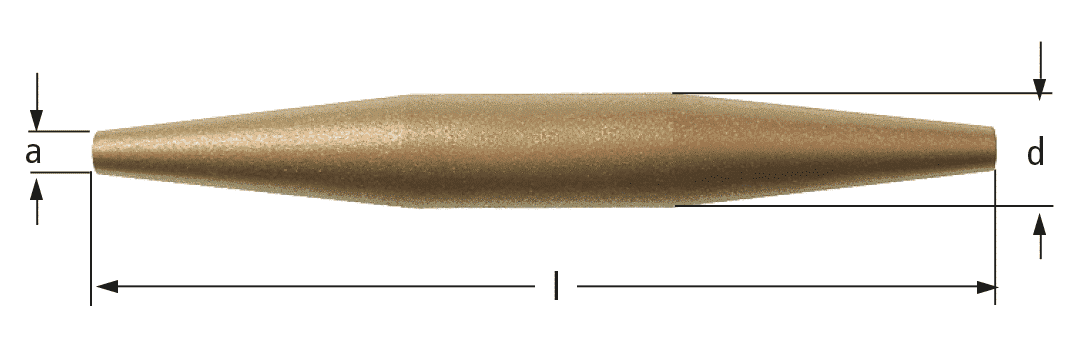

Barrel type drift pin

Description

Barrel type drift pin

Aluminium bronze (AlBz) has a magnetic permeability rating of μ 1.16 and a higher energy absorption capacity (good resistance to shocks).

Beryllium Copper (BeCu) has a magnetic permeability rating of μ 1.00 high. Hardness can reach from 280 to 350 Brinell. This alloy is well adapted for small surfaces which require strength.

Additional information

Weight 230 g
Dimensions 200 mm
Material

BeCu, AlBz
Metric/Imperial Units

mm
a mm

8, 10, 13, 18, 22
d mm

17, 21, 24, 27, 30, 33

SKU: HC0001B

Description

Barrel type drift pin

Aluminium bronze (AlBz) has a magnetic permeability rating of μ 1.16 and a higher energy absorption capacity (good resistance to shocks).

Beryllium Copper (BeCu) has a magnetic permeability rating of μ 1.00 high. Hardness can reach from 280 to 350 Brinell. This alloy is well adapted for small surfaces which require strength.

Additional information

Weight 230 g
Dimensions 200 mm
Material

BeCu, AlBz
Metric/Imperial Units

mm
a mm

8, 10, 13, 18, 22
d mm

17, 21, 24, 27, 30, 33

Related Products

Add products to quote

You can add one or more products to your quote by specifying a quantity.

Product Specs

Part No

Material

a mm

d mm

l (mm)

(g)

Quantity

Part No.: HC0001B
Material: AlBz
a mm: 8
d mm: 17
L (mm): 200
(g): 230
Quantity:
Part No.: HC0001B
Material: BeCu
a mm: 8
d mm: 17
L (mm): 200
(g): 230
Quantity:
Part No.: HC0002A
Material: AlBz
a mm: 8
d mm: 21
L (mm): 200
(g): 360
Quantity:
Part No.: HC0002B
Material: BeCu
a mm: 8
d mm: 21
L (mm): 200
(g): 360
Quantity:
Part No.: HC0003A
Material: AlBz
a mm: 10
d mm: 24
L (mm): 200
(g): 415
Quantity:
Part No.: HC0003B
Material: BeCu
a mm: 10
d mm: 24
L (mm): 200
(g): 415
Quantity:
Part No.: HC0004A
Material: AlBz
a mm: 13
d mm: 27
L (mm): 200
(g): 630
Quantity:
Part No.: HC0004B
Material: BeCu
a mm: 13
d mm: 27
L (mm): 200
(g): 630
Quantity:
Part No.: HC0005A
Material: AlBz
a mm: 18
d mm: 30
L (mm): 200
(g): 880
Quantity:
Part No.: HC0005B
Material: BeCu
a mm: 18
d mm: 30
L (mm): 200
(g): 880
Quantity:
Part No.: HC0006A
Material: AlBz
a mm: 22
d mm: 33
L (mm): 200
(g): 1050
Quantity:
Part No.: HC0006B
Material: BeCu
a mm: 22
d mm: 33
L (mm): 200
(g): 1050
Quantity:
